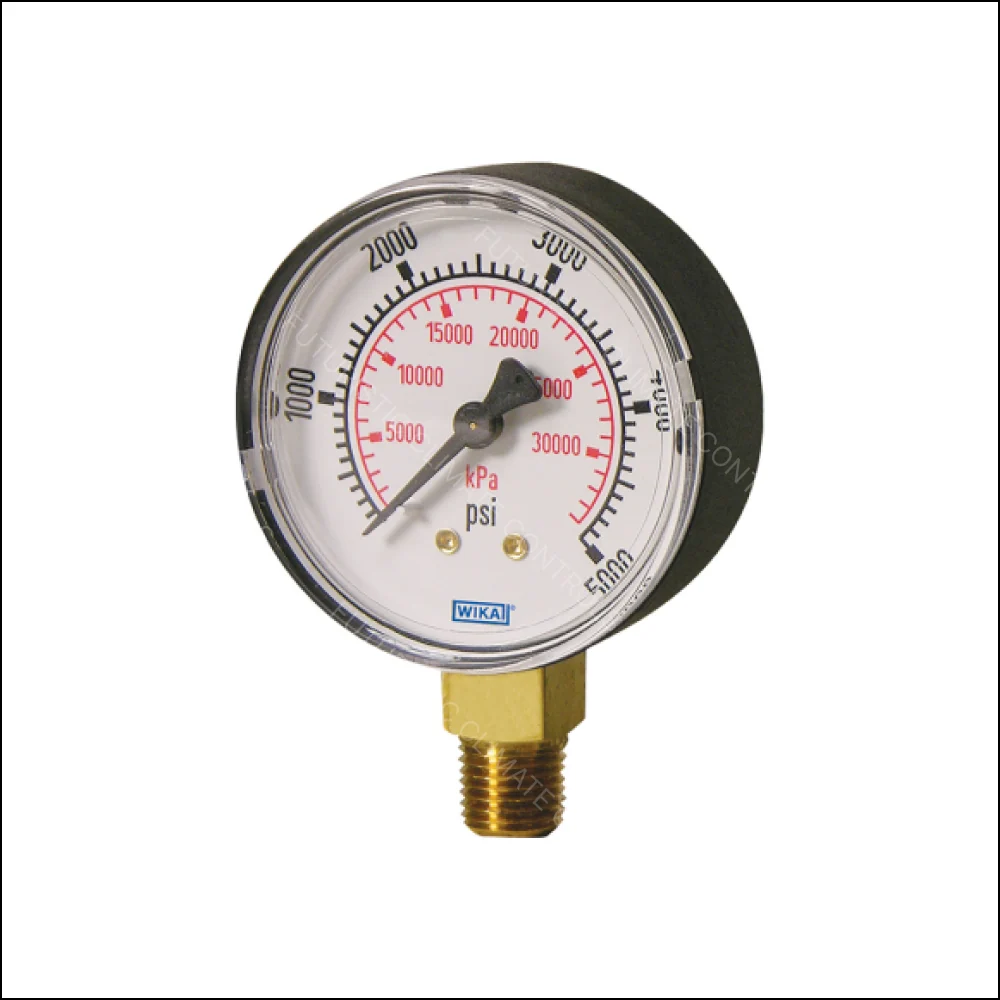

WIKA 111.10 Bourdon Tube Pressure Gauge
Out of stock
The WIKA 111.10 Bourdon Tube Pressure Gauge is a dependable mechanical pressure measuring instrument engineered for accurate pressure monitoring in industrial applications. Built with copper alloy wetted parts and manufactured in accordance with EN 837-1 standards, it is ideal for measuring the pressure of non-corrosive gases and liquids. Its rugged construction, excellent readability, and wide pressure range make it suitable for HVAC systems, hydraulic equipment, compressors, pumps, water treatment plants, and general industrial machinery.
The WIKA Model 111.10 Bourdon Tube Pressure Gauge is one of the most widely used industrial pressure gauges for reliable pressure measurement across various industries. Designed for durability and consistent performance, this gauge features a precision-engineered Bourdon tube mechanism that delivers accurate pressure readings even in demanding operating environments.
Its robust steel case, brass pressure connection, and copper alloy measuring system make it suitable for measuring pressure in clean gases and liquids that are not highly viscous, crystallising, or corrosive to copper alloy components.
Available in multiple dial sizes, pressure ranges, and connection configurations, the WIKA 111.10 offers flexibility for OEM manufacturers, maintenance teams, engineering contractors, and industrial process applications.
Whether installed on compressors, pumps, boilers, hydraulic systems, pneumatic equipment, or water treatment plants, the WIKA 111.10 provides dependable performance with minimal maintenance requirements.
Key Features
- Manufactured according to EN 837-1 international standards
- Precision Bourdon tube measuring system
- Durable black steel case construction
- Copper alloy wetted parts for reliable operation
- Brass pressure connection for long service life
- Clear and easy-to-read dial with black markings
- Suitable for gaseous and liquid media
- Available in bottom entry and back entry configurations
- Wide selection of pressure ranges from vacuum to 1000 bar
- Multiple dial sizes available
- Economical solution for industrial pressure measurement
- Low maintenance design
- Long operational lifespan
- Easy installation and replacement
- Trusted WIKA manufacturing quality
Applications
The WIKA 111.10 Pressure Gauge is commonly used in:
- Industrial Process Plants
- Water Treatment Systems
- RO Plants
- Pumping Stations
- Air Compressors
- Hydraulic Power Packs
- Pneumatic Systems
- HVAC Equipment
- Boiler Systems
- Steam Distribution Lines
- Manufacturing Industries
- Food & Beverage Processing
- Pharmaceutical Plants
- Chemical Industries
- Textile Industries
- Paper & Pulp Mills
- Cement Plants
- Steel Manufacturing
- Mining Operations
- OEM Machinery
- Utility Services
- Laboratory Equipment
- Refrigeration Systems
| Brand | WIKA |
|---|---|
| Model | 111.10 |
| Product Type | Bourdon Tube Pressure Gauge |
| Measuring Principle | Bourdon Tube |
| Accuracy Class | Class 2.5 |
| Standard | EN 837-1 |
| Case Material | Black Steel |
| Wetted Parts | Copper Alloy |
| Pressure Connection | Brass |
| Window Material | Instrument Glass |
| Dial Sizes | 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, 160 mm |
| Connection Position | Bottom Entry / Back Entry |
| Connection Thread | BSP or NPT (depending on model) |
| Ambient Temperature | -20°C to +60°C |
| Medium Temperature | Up to +60°C |
| Protection Rating | IP31 |
| Scale Unit | bar, psi, MPa, kg/cm² (depending on variant) |
| Fill Fluid | Dry (Non-Liquid Filled) |
| Pressure Ranges | 0–1 bar |
