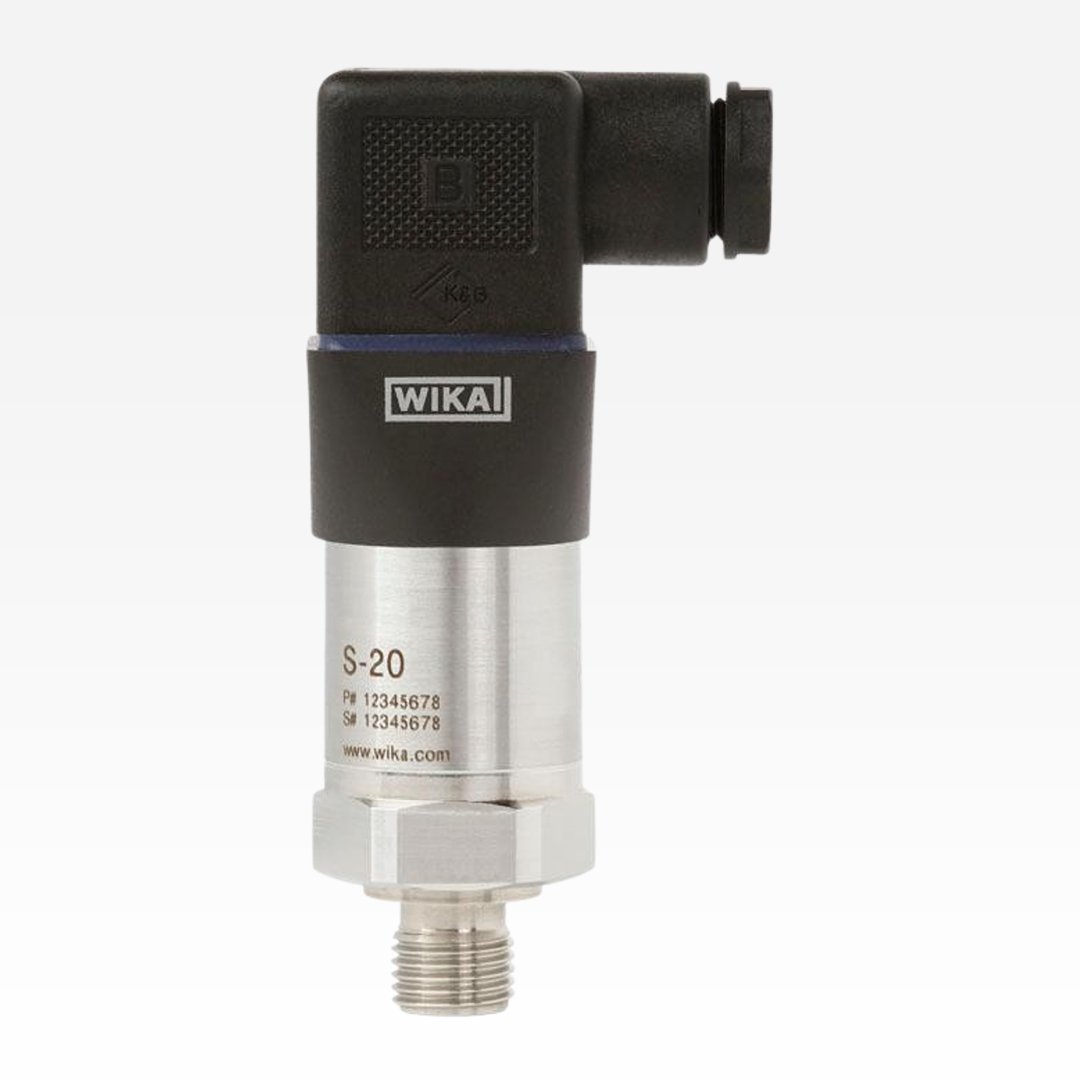

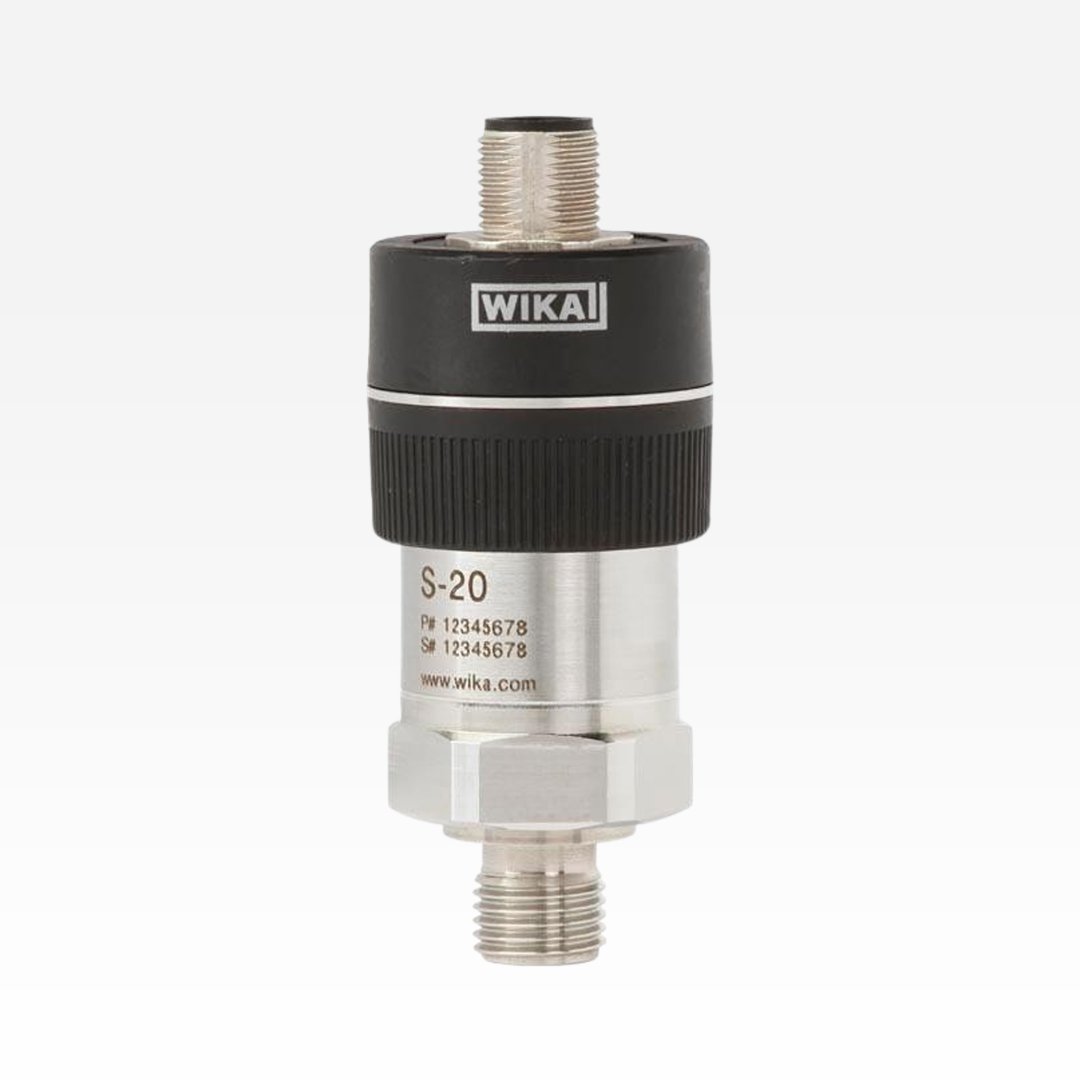

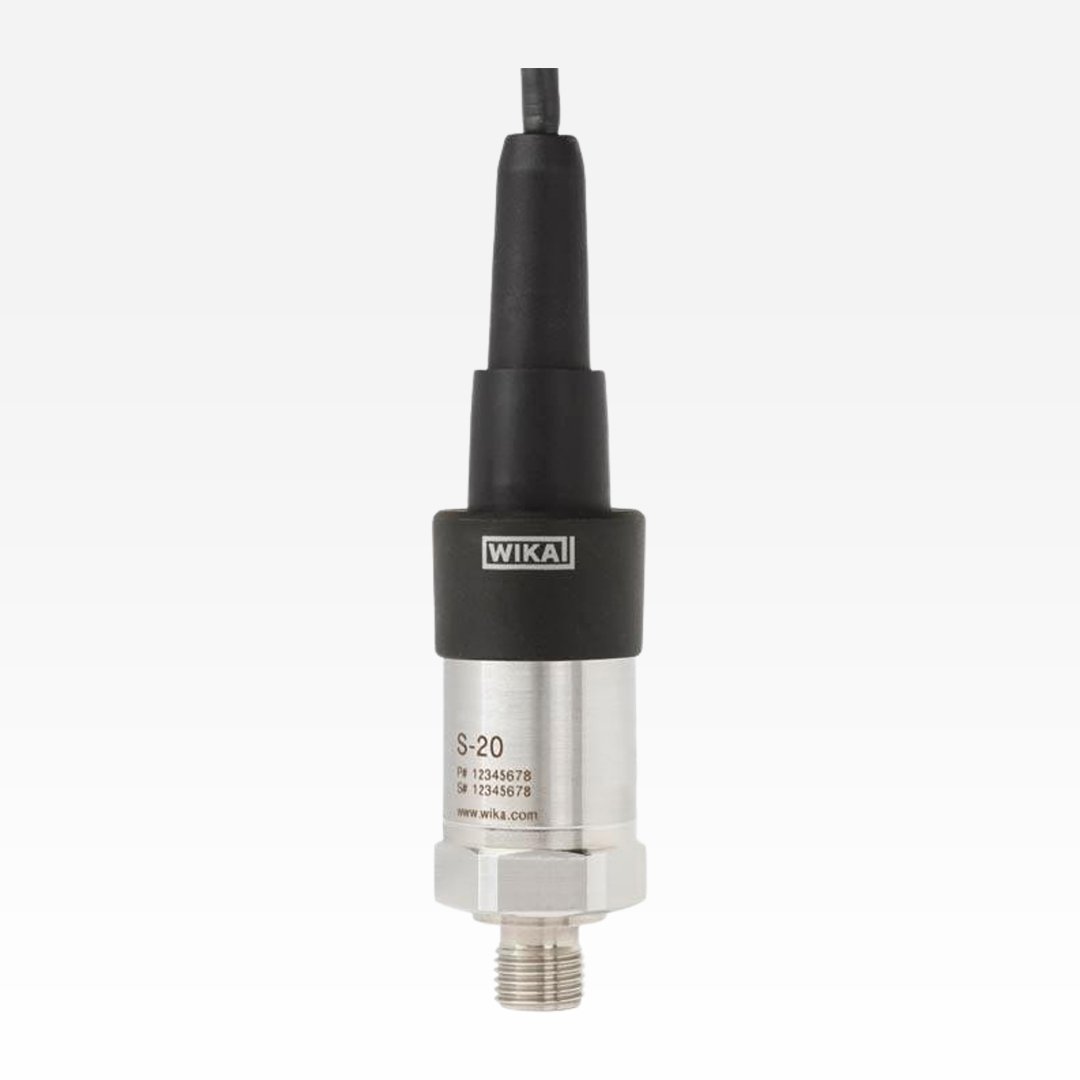

WIKA S-20 Industrial Pressure Transmitter
The WIKA S-20 Pressure Transmitter is a high-performance industrial pressure sensor designed for demanding pressure measurement applications. Featuring excellent long-term stability, high accuracy, and a rugged stainless steel construction, the S-20 is ideal for hydraulic systems, process industries, OEM equipment, water treatment plants, compressors, pumps, and research applications. With multiple pressure ranges, electrical outputs, and process connection options, it delivers reliable performance even in harsh operating environments.
The WIKA S-20 Pressure Transmitter is engineered to provide precise and reliable pressure measurement across a wide range of industrial applications. Designed with a fully welded stainless steel measuring cell and robust housing, it offers exceptional durability, long service life, and stable measurement performance.
Suitable for both gaseous and liquid media compatible with stainless steel, the S-20 supports numerous pressure ranges, output signals, electrical connectors, and process connections, making it one of the most versatile pressure transmitters available for industrial automation and process control. It is available with common industrial outputs such as 4–20 mA, 0–10 V, and 1–5 V, with measuring ranges extending from 0.4 bar up to 1,600 bar, depending on the selected variant.
Its compact design, excellent measurement accuracy, and resistance to vibration and shock make it suitable for continuous operation in harsh industrial environments.
Key Features
- High-performance industrial pressure transmitter
- Robust stainless steel construction
- Excellent measurement accuracy
- Long-term measurement stability
- Pressure ranges from 0.4 bar to 1600 bar
- Multiple output signals available
- Compact industrial design
- Suitable for liquid and gaseous media
- Wide range of electrical connection options
- Multiple international process connections
- Resistant to vibration and shock
- Fast response time
- Low maintenance
- Reliable operation in harsh environments
- Designed for continuous industrial service
- Suitable for OEM integration
- CE compliant industrial instrument
Applications
The WIKA S-20 Pressure Transmitter is widely used in:
- Process Industries
- Hydraulic Systems
- Pneumatic Systems
- Water Treatment Plants
- Reverse Osmosis (RO) Systems
- Industrial Pumps
- Air Compressors
- Boiler Systems
- Chemical Processing Plants
- Pharmaceutical Manufacturing
- Food & Beverage Industry
- Oil & Gas Facilities
- Steel Plants
- Cement Plants
- Paper & Pulp Mills
- Power Generation
- Machine Building
- OEM Equipment
- Laboratory & Test Benches
- Research & Development
- Automation Systems
- Process Control Panels
| Brand | WIKA |
|---|---|
| Model | S-20 |
| Product Type | Pressure Transmitter |
| Pressure Range | 0.4 bar to 1600 bar |
| Accuracy | Up to ±0.125% Span |
| Output Signal | 4–20 mA, 0–10 V, 1–5 V |
| Process Connection | G1/4, G1/2, 1/4 NPT, 1/2 NPT |
| Wetted Parts | Stainless Steel |
| Electrical Connection | DIN Connector, M12, Cable Outlet |
| Operating Temperature | -30°C to +100°C |
| Protection Rating | Up to IP68 / IP69K |
| Pressure Units | bar, psi, MPa, kPa |
